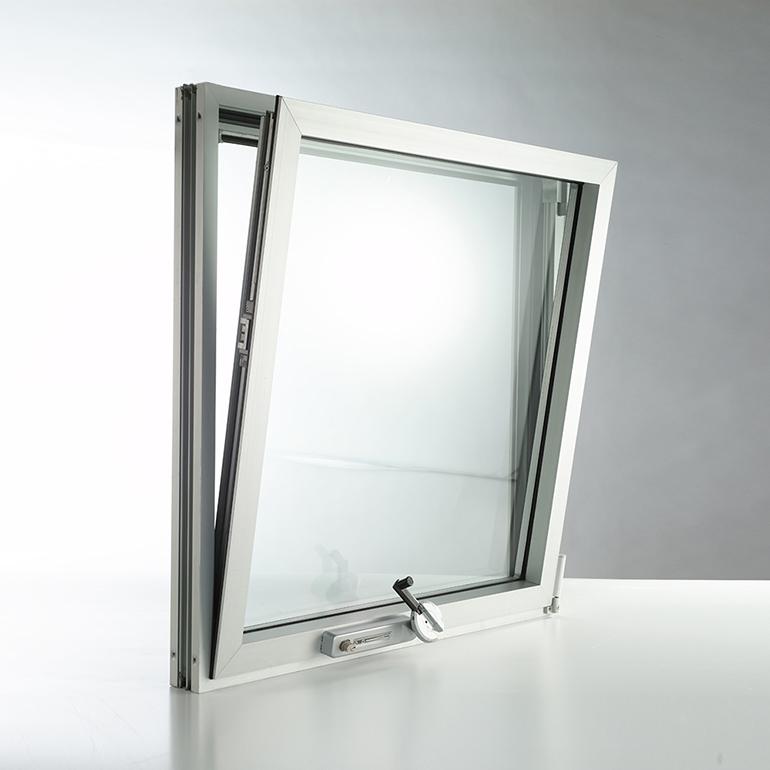

TILT & TURN CRANK

Series 1200

ADA Compliant

Oversize Capability

Incremental Control

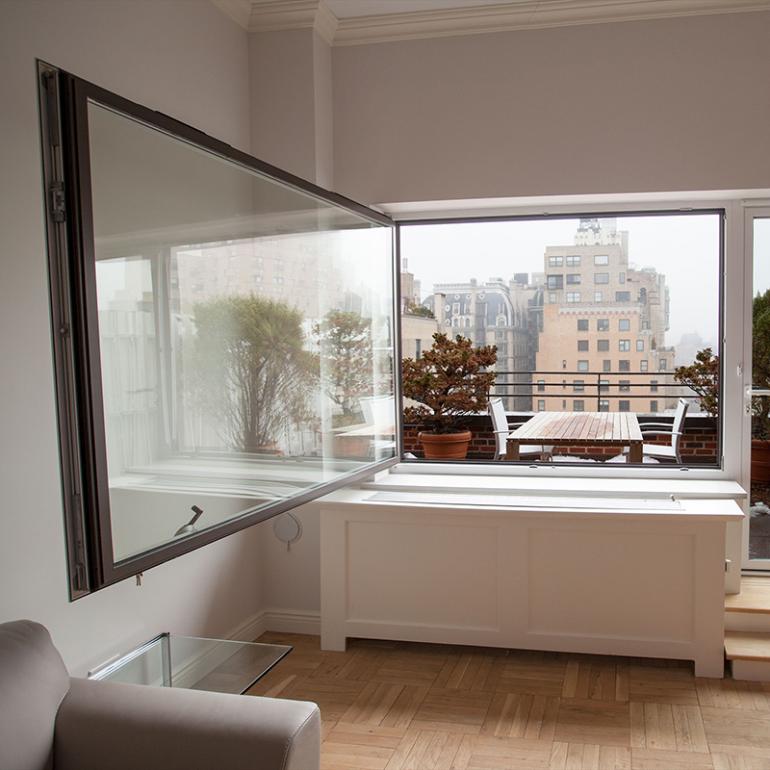

A cousin of our Series 500 Tilt & Turn, the Series 1200 takes an already great window and optimizes it to near perfection. Utilizing state-of-the-art crank handle hardware, the Series 1200 is capable of operating very large windows with ADA-friendly efficiency. This allows for ultra heavy windows to keep out the noisy street sounds. The 1200 achieves maximal operation due to its high performing hardware system.  It also has a modulating operability feature that allows residents to open - and keep open - the window however little or much they want to.



    • Architectural / Commercial

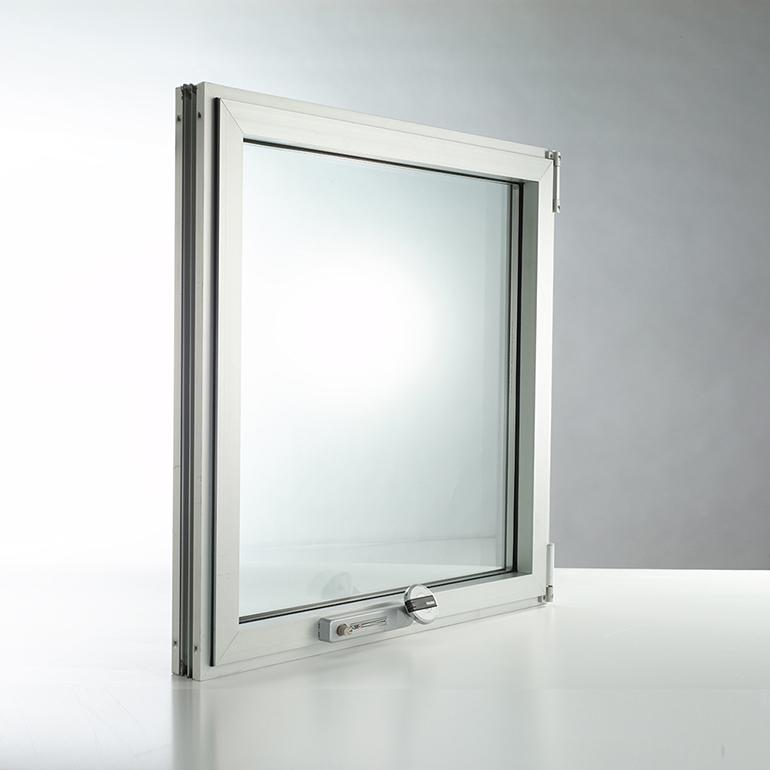

    • Crank operator allows for micro-adjustment of sash position

    • Structural and bead glazed options available

    • Safe cleaning from interior

    • Extruded corner key construction

    • Glazing: 1” - 1 ½” insulating glass

    • Improved thermal performance

    • Improved acoustical ratings

    • Continuous gasketed weather-stripping for unsurpassed performance

    • Pressure equalized frame design

    • 2 ¾” frame depth

    • Thermally insulated I-Strut frames

  • Muntins
    CAD
    PDF

    Panning
    CAD
    PDF

    Snap Trim
    CAD
    PDF

  • Series 1200 Brochure Version 1

    Series 1200 Brochure Version 2



standard stock finishes - aama 2603

white interior / white exterior

white interior / bronze exterior

white interior / black exterior

bronze interior / bronze exterioR

Custom Colors & Finishes Available
Upon Request

AAMA 2603
AAMA 2604
AAMA 2605

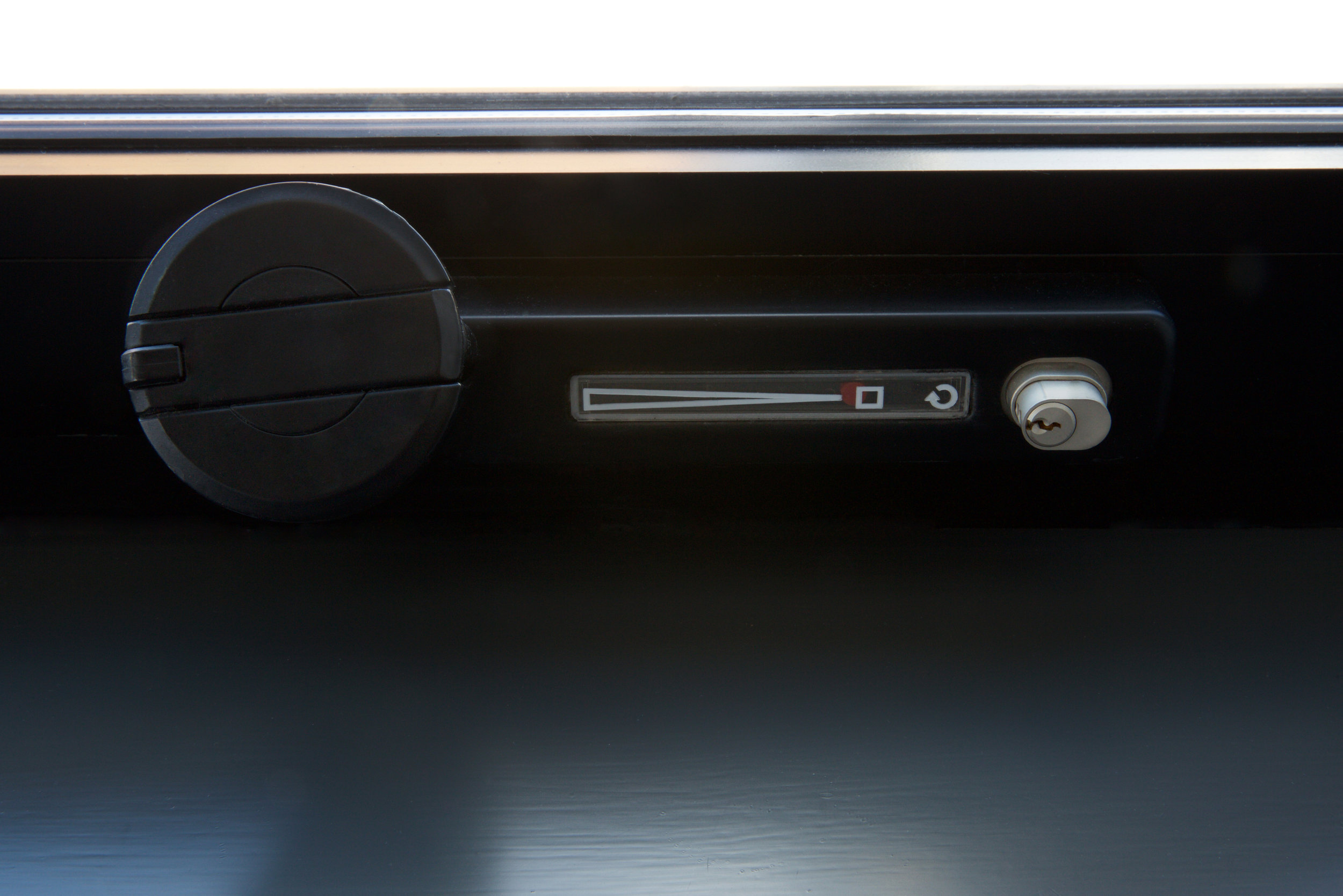

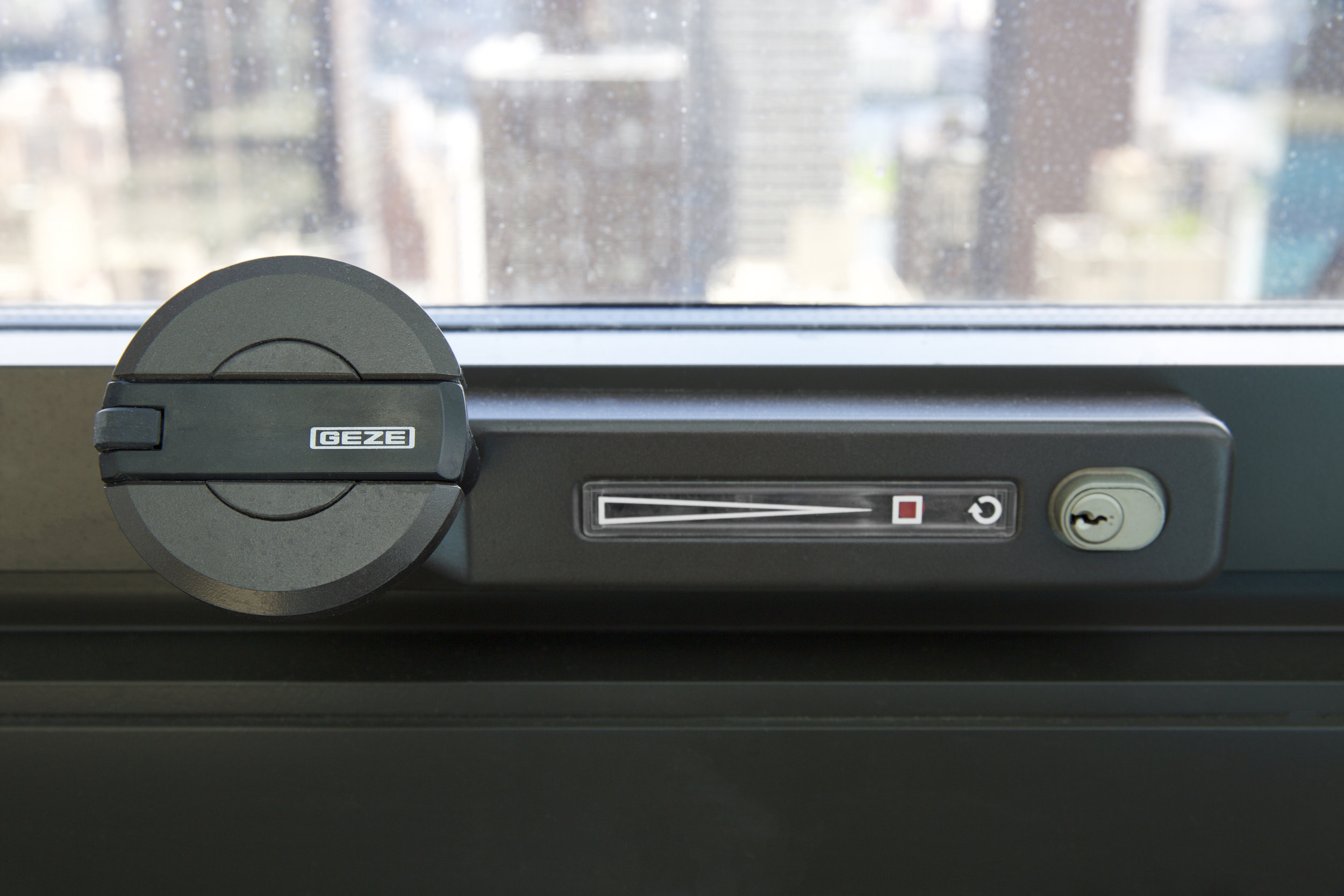

Hardware



HANDLE ON SILL

HANDLE ON JAMB

testing

These values are dependent on the specifics of your project and may vary.

aama rating

DA-AW-75

Window test size

60" X 100"

Window depth

2.75"

Structural load

112.5 PSF

Air @ 6.24 PSF (CFM/FT2)

0.01

Water

12 PSF

Glass thickness

1
