INSWING CASEMENT

Series 500 (500-C)

NYC Child-Falls Hardware

Narrow Structural Sightlines

Multipoint Lock Performance

The Skyline Series 500 Casement window offers a variety of features making it a popular choice for architects, designers, and residents. Utilizing the same functional design as Skyline's Tilt & Turn window, the 500-C has narrow sightlines, multi lock and child safe hardware add ons, and various high quality options such as muntin grids to fit your specific requirements. Due to its wide array of applications, the 500-C is a high-performance option for any project.



    • Architectural / Commercial

    • Multi-Lock Key capture hardware available for maintenance personnel and child safety

    • Structural and bead glazed options available

    • Narrow uniform profiles available on the structurally glazed version

    • Extruded corner key construction

    • Glazing: 1 - 1 ½” insulating glass

    • Improved thermal performance

    • Improved acoustical performance

    • Continuous gasketed weather-stripping for unsurpassed performance

    • Pressure equalized frame design

    • 2 ¾” or 3 ⅞” frame depths available

    • Thermally insulated I-Strut frames

  • Muntins
    CAD
    PDF

    Panning
    CAD
    PDF

    Snap Trim
    CAD
    PDF

  • Series 500 Brochure Version 1

    Series 500 Brochure Version 2



standard stock finishes - aama 2603

white interior / white exterior

white interior / bronze exterior

white interior / black exterior

bronze interior / bronze exterior

Custom Colors & Finishes Available
Upon Request

AAMA 2603
AAMA 2604
AAMA 2605

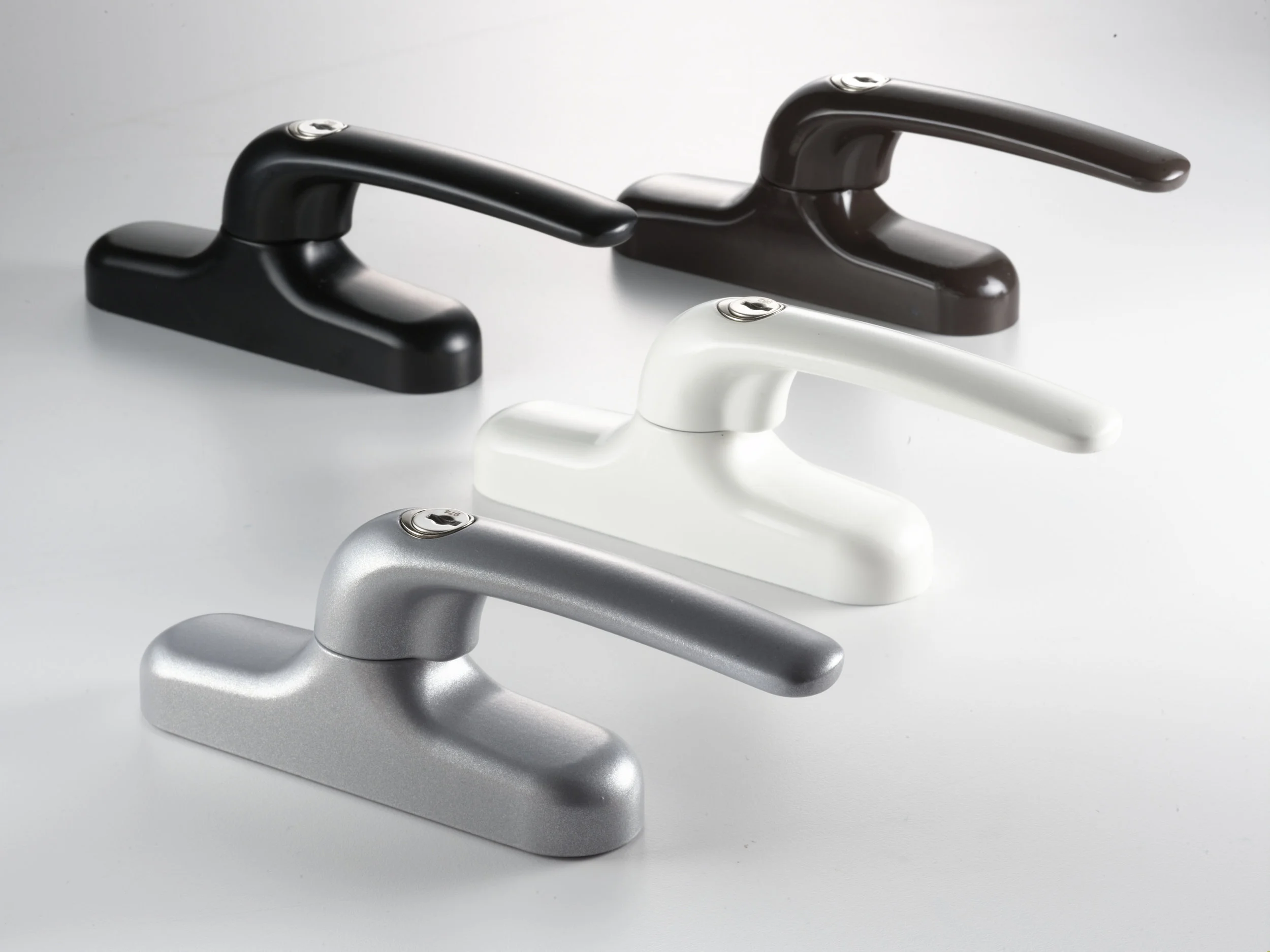

standard Handles

Giesse Handle (Keyed)

Giesse Handle (Unkeyed)

Savio Handle (Keyed)

Savio Handle (Unkeyed)

CUSTOM HANDLE OPTIONS

Idro
Studio Manital



Testing

These values are dependent on the specifics of your project and may vary.

aama rating

C-AW-100


Air @ 6.24 PSF (CFM/FT2)

0.01

Window test size

36" X 60"


Water

15 PSF

Window depth

2.75"


Glass thickness

1"

Structural load

150 PSF
